Inner height hi: 15,6mm
Inner widths Bi: 10 - 40mm
Bend radii R: 28 - 48mm
Pitch: 20mm

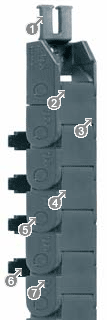

1. Mounting bracket with strain relief option
2. Outside closed
3. Dirt-repelling outer contour
4. One-piece chain link type
5. Small pitch for quiet, smooth running
6. Injection-moulded crossbar, openable lid on inside with integral hinge
7. Outer height ha = 19,3 mm
Available Inner widths Bi: 10
Available bending radii Bi: 38, 48

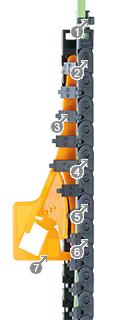

Series 094 is suitable for the following types of applications:
Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications ≤ 1 m
Circular movement: Rotating application possible, if necessary with reworking (from 180° rotation angle mechanical reworking is always necessary)

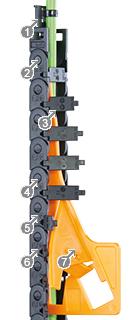

Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications ≤ 1 m
Circular movement: Rotating application possible, if necessary with reworking (from 180° rotation angle mechanical reworking is always necessary)
- When a small e-chain® with 15 mm inner height and smallest bend radii is required
- Inner width 10mm
- For unsupported lengths up to 1.0m and fill weights up to 0.7kg/m
- Quiet operation due to small pitch
- If an e-chain® with integral hinge is required
- When easy filling with connectorised cables is required
- When an enclosed e-tube is required
