Inner height hi: 11,5mm
Inner widths Bi: 10 - 40mm
Bend radii R: 18 - 38mm
Pitch: 20mm

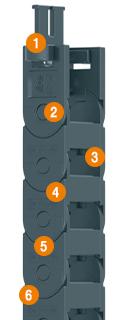

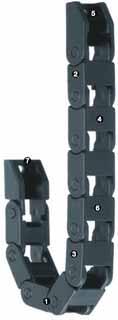

1. Mounting bracket with strain relief option
2. Outside closed
3. Dirt-repelling outer contour
4. One-piece chain link type
5. Small pitch for quiet, smooth running
6. Injection-moulded crossbar, openable lid on inside with integral hinge
7. Outer height ha = 15 mm
Series 074 is suitable for the following types of applications:
Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications ≤ 0.55 m
Circular movement: Rotating application possible, if necessary with reworking (from 180° rotation angle mechanical reworking is always necessary)
Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications ≤ 0.55 m
Circular movement: Rotating application possible, if necessary with reworking (from 180° rotation angle mechanical reworking is always necessary)
- When a small e-chain® with 10,9 mm inner height and smallest bend radii is required
- Inner width 10mm
- For unsupported lengths up to 0.55m and fill weights up to 0.4kg/m
- Quiet operation due to small pitch
- If an e-chain® with integral hinge is required
- When easy filling with connectorised cables is required
- If openable chain links are necessary
- When an enclosed e-tube is required
