Inner height hi: 10,3mm
Inner widths Bi: 6 - 64mm
Bend radii R: 18 - 38mm
Pitch: 20mm

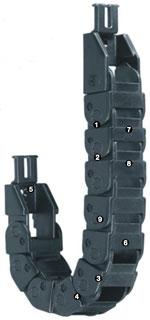

1. Plastic hinge enables opening along the outer radius
2. Small pitch for quiet, smooth running
3. For high rates of acceleration
4. Low weight and strong
5. Mounting bracket with integrated strain relief possible
6. Modular 2-component structure of the chain links - reduces assembly time
7. Easy to lengthen and shorten
8. Closed, openable option
Series B07 is suitable for the following types of applications:
Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications ≤ 1 m
Circular movement: Rotating application possible, if necessary with reworking (from 180° rotation angle mechanical reworking is always necessary)
Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications ≤ 1 m
Circular movement: Rotating application possible, if necessary with reworking (from 180° rotation angle mechanical reworking is always necessary)
- When a small e-chain® with 10,3 mm inner height and smallest bend radii is required
- For inner widths up to 40mm
- For unsupported lengths up to 0.55m and fill weights up to 0.4kg/m
- Quiet operation due to small pitch
- If an easy-to-open and cost-effective e-chain® is required
- When easy filling with connectorised cables is required
- If opening the crossbars is not necessary
- When you want to fill without opening lids
- When a fast-opening tube system is required
